[Syzkaller VI]syz-manager
- 加载配置文件
- 建立HTTP服务器, 实时报告进度
- 建立rpc服务器, 等待fuzzer连接
- 执行ssh命令, 登录到虚拟机上执行syz-executor
配置文件示例
{
"target": "linux/amd64",
"http": "127.0.0.1:56741",
"workdir": "/usr/src/syzkaller/workdir",
"kernel_obj": "/usr/src/linux/linux-5.13/",
"image": "/home/dustball/image/bullseye.img",
"sshkey": "/home/dustball/image/bullseye.id_rsa",
"syzkaller": "/usr/src/syzkaller/",
"procs": 8,
"type": "qemu",
"sandbox": "setuid",
"enable_syscalls":[
"open$testxy",
"read$testxy",
"write$testxy"
],
"vm": {
"count": 1,
"kernel": "/usr/src/linux/linux-5.13/arch/x86/boot/bzImage",
"cpu": 2,
"mem": 2048 ,
"cmdline": "net.ifnames=0"
}
}

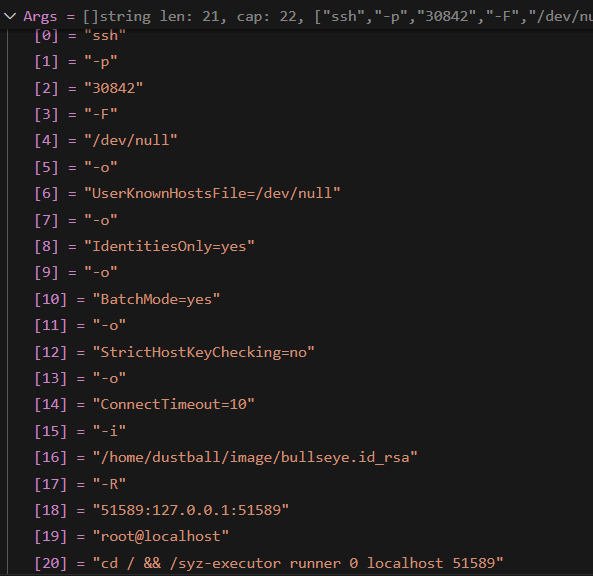

sshArgs
"/syz-executor runner 0 localhost 51589"
[]string len: 32, cap: 32, ["qemu-system-x86_64","-m","2048","-smp","2","-chardev","socket,id=SOCKSYZ,server=on,wait=off,host=localhost,port=53276","-mon","chardev=SOCKSYZ,mode=control","-display","none","-serial","stdio","-no-reboot","-name","VM-0","-device","virtio-rng-pci","-enable-kvm","-cpu","host,migratable=off","-device","e1000,netdev=net0","-netdev","user,id=net0,restrict=on,hostfwd=tcp:127.0.0.1:50885-:22","-hda","/home/dustball/image/bullseye.img","-snapshot","-kernel","/usr/src/linux/linux-5.13/arch/x86/boot/bzImage","-append","root=/dev/sda console=ttyS0 net.ifnames=0"]
控制流分析
main
主要干了三件事:
- 解析命令行参数
- 加载配置文件
- RunManager
Runmanager
func RunManager(mode *Mode, cfg *mgrconfig.Config) {
var vmPool *vm.Pool
if !cfg.VMLess {
var err error
vmPool, err = vm.Create(cfg, *flagDebug)
if err != nil {
log.Fatalf("%v", err)
}
defer vmPool.Close()
}
osutil.MkdirAll(cfg.Workdir)
reporter, err := report.NewReporter(cfg)
mgr := &Manager{
cfg: cfg,
mode: mode,
vmPool: vmPool,
corpusPreload: make(chan []fuzzer.Candidate),
target: cfg.Target,
sysTarget: cfg.SysTarget,
reporter: reporter,
crashStore: manager.NewCrashStore(cfg),
crashTypes: make(map[string]bool),
disabledHashes: make(map[string]struct{}),
memoryLeakFrames: make(map[string]bool),
dataRaceFrames: make(map[string]bool),
fresh: true,
externalReproQueue: make(chan *manager.Crash, 10),
crashes: make(chan *manager.Crash, 10),
saturatedCalls: make(map[string]bool),
reportGenerator: manager.ReportGeneratorCache(cfg),
}
mgr.http = &manager.HTTPServer{
// Note that if cfg.HTTP == "", we don't start the server.
Cfg: cfg,
StartTime: time.Now(),
CrashStore: mgr.crashStore,
}
mgr.initStats()
if mgr.mode.LoadCorpus {
go mgr.preloadCorpus()
} else {
close(mgr.corpusPreload)
}
// Create RPC server for fuzzers.
mgr.servStats = rpcserver.NewStats()
rpcCfg := &rpcserver.RemoteConfig{
Config: mgr.cfg,
Manager: mgr,
Stats: mgr.servStats,
Debug: *flagDebug,
}
mgr.serv, err = rpcserver.New(rpcCfg)
ctx := vm.ShutdownCtx()
go func() {
err := mgr.serv.Serve(ctx)
if err != nil {
log.Fatalf("%s", err)
}
}()
log.Logf(0, "serving rpc on tcp://%v", mgr.serv.Port())
if cfg.DashboardAddr != "" {
opts := []dashapi.DashboardOpts{}
if cfg.DashboardUserAgent != "" {
opts = append(opts, dashapi.UserAgent(cfg.DashboardUserAgent))
}
dash, err := dashapi.New(cfg.DashboardClient, cfg.DashboardAddr, cfg.DashboardKey, opts...)
if err != nil {
log.Fatalf("failed to create dashapi connection: %v", err)
}
mgr.dashRepro = dash
if !cfg.DashboardOnlyRepro {
mgr.dash = dash
}
}
if !cfg.AssetStorage.IsEmpty() {
mgr.assetStorage, err = asset.StorageFromConfig(cfg.AssetStorage, mgr.dash)
if err != nil {
log.Fatalf("failed to init asset storage: %v", err)
}
}
if *flagBench != "" {
mgr.initBench()
}
go mgr.heartbeatLoop()
if mgr.mode != ModeSmokeTest {
osutil.HandleInterrupts(vm.Shutdown)
}
mgr.pool = vm.NewDispatcher(mgr.vmPool, mgr.fuzzerInstance)
mgr.http.Pool = mgr.pool
reproVMs := max(0, mgr.vmPool.Count()-mgr.cfg.FuzzingVMs)
mgr.reproLoop = manager.NewReproLoop(mgr, reproVMs, mgr.cfg.DashboardOnlyRepro)
mgr.http.ReproLoop = mgr.reproLoop
mgr.http.TogglePause = mgr.pool.TogglePause
if mgr.cfg.HTTP != "" {
go func() {
err := mgr.http.Serve(ctx)
if err != nil {
log.Fatalf("failed to serve HTTP: %v", err)
}
}()
}
go mgr.trackUsedFiles()
go mgr.processFuzzingResults(ctx)
mgr.pool.Loop(ctx)
}
//manager.go
var vmPool *vm.Pool
if !cfg.VMLess {
var err error
vmPool, err = vm.Create(cfg, *flagDebug) //调用vm模块下的Create函数
if err != nil {
log.Fatalf("%v", err)
}
defer vmPool.Close()
}
// vm/vm.go
// Create creates a VM pool that can be used to create individual VMs.
func Create(cfg *mgrconfig.Config, debug bool) (*Pool, error) {
typ, ok := vmimpl.Types[vmType(cfg.Type)]
//每个vm目录下的虚拟机类型, 比如qemu, 都会调用vmimpl.Register往这个列表中注册类型, 以及该类型的构造函数ctor
if !ok {
return nil, fmt.Errorf("unknown instance type '%v'", cfg.Type)
}
env := &vmimpl.Env{
Name: cfg.Name,
OS: cfg.TargetOS,
Arch: cfg.TargetVMArch,
Workdir: cfg.Workdir,
Image: cfg.Image,
SSHKey: cfg.SSHKey,
SSHUser: cfg.SSHUser,
Timeouts: cfg.Timeouts,
Snapshot: cfg.Snapshot,
Debug: debug,
Config: cfg.VM,
KernelSrc: cfg.KernelSrc,
}
impl, err := typ.Ctor(env)
if err != nil {
return nil, err
}
count := impl.Count()
if debug && count > 1 {
log.Logf(0, "limiting number of VMs from %v to 1 in debug mode", count)
count = 1
}
return &Pool{
impl: impl,
typ: typ,
workdir: env.Workdir,
template: cfg.WorkdirTemplate,
timeouts: cfg.Timeouts,
count: count,
snapshot: cfg.Snapshot,
hostFuzzer: cfg.SysTarget.HostFuzzer,
statOutputReceived: stat.New("vm output", "Bytes of VM console output received",
stat.Graph("traffic"), stat.Rate{}, stat.FormatMB),
}, nil
}
创建vm pool,
vm, virtual machine, 虚拟机
根据 cfg中的 "type": "qemu"键值对, 决定创建何种类型的 vm
type Pool struct {
impl vmimpl.Pool
typ vmimpl.Type
workdir string
template string
timeouts targets.Timeouts
count int
activeCount int32
snapshot bool
hostFuzzer bool
statOutputReceived *stat.Val
}
// Pool represents a set of test machines (VMs, physical devices, etc) of particular type.
type Pool interface {
// Count returns total number of VMs in the pool.
Count() int
// Create creates and boots a new VM instance.
Create(ctx context.Context, workdir string, index int) (Instance, error)
}
加载corpus,
位置为config文件中指定的workdir路径后缀加上/corpus.db, 比如: "/usr/src/syzkaller/workdir/corpus.db"
使用bufio.NewReader读取成字节流, 然后反序列化

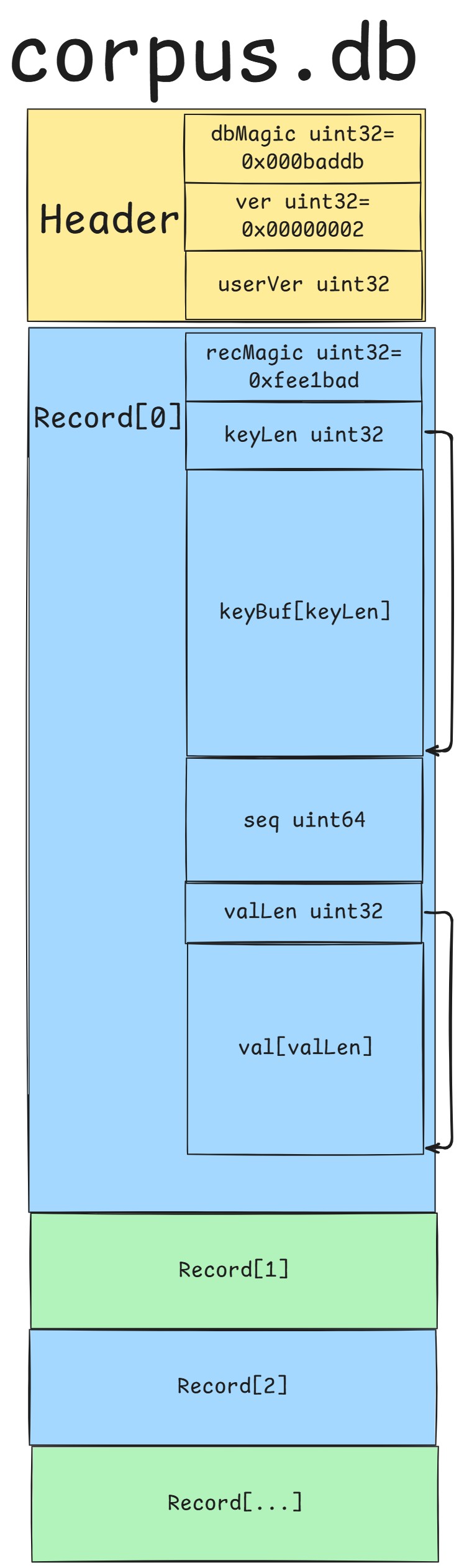

这个corpus的格式为:
